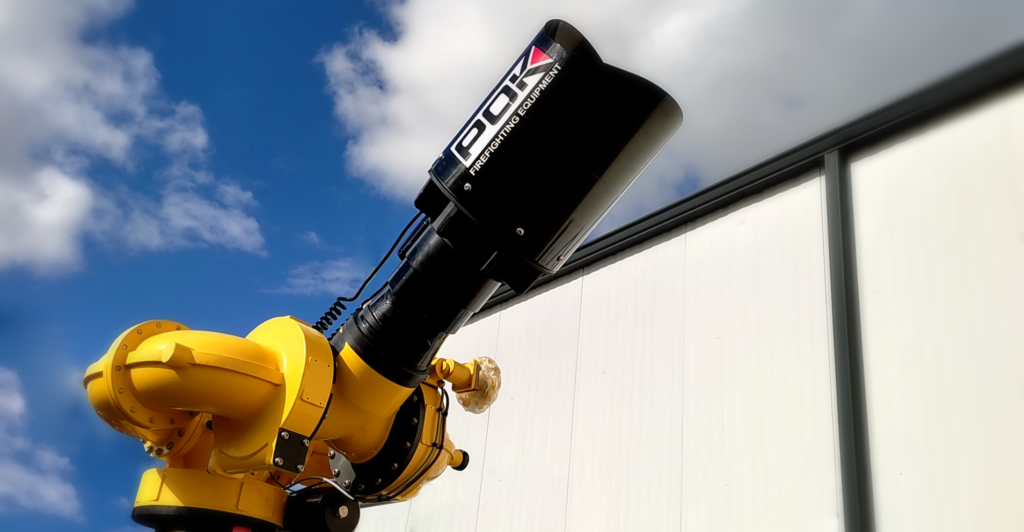

The latest DN200 monitor
POK is proud to present its all-new monitor, representing the summum of the aluminum model range.
Outstanding performance
The DN200 STACS monitor offers exceptional performance, with a capacity of up to 30,000 lpm at 7 bar for the horizontal version. It can be installed on a towable chassis, a service vehicle or as a fixed installation. What’s more, its 8” BSP female outlet allows the connection of various output equipment, such as water diffusers, water/foam diffusers, or water/foam branchpipes.
To demonstrate this performance, a video, made with our water-foam diffuser, reference 49941, is available here. In this impressive demonstration, the monitor and diffuser reach a range of 125 metres at 7 bar, with a 30° vertical position.
STACS-compatible
The DN200 STACS is compatible with the STACS (Smart Truck Active Control System), offering the system’s full range of functions. Equipped with absolute position sensors and new brushless motors, it is the ultimate weapon for fighting large-scale fires. This compatibility also enables vertical and horizontal position to be used by remote control, guaranteeing safety, speed and efficiency.
Vertical version
The vertical version was specially designed for one of our customers.

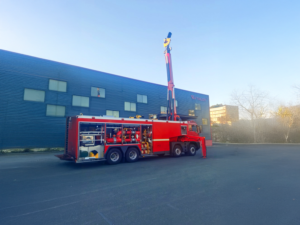

This Chinese equipment manufacturer planned to install this monitor on an 8-metre telescopic mast that deploys atop a pump truck. This (vertical) configuration reduces the overall dimension of the DN200 STACS when the mast is repositioned, while allowing a flow rate of up to 24,000 L/min at 7 bar.
Our two different versions
Monitor horizontal version (ref. 49924), with water/foam diffuser (ref. 49941).
Monitor vertical version (ref. 49923), with water/foam diffuser (ref. 49941).
